Understanding the OBD Port: Its Uses and Benefits

What is the OBD Port?

The On-Board Diagnostics (OBD) port is an essential interface found in all modern vehicles, serving as a gateway for diagnostic information related to the car’s performance and emissions systems. This standardized system allows mechanics and technicians to access critical data that can significantly aid in vehicle maintenance and repair. The OBD port provides a connection point for diagnostic tools, which communicate with the vehicle's computer systems to retrieve information about various operational aspects, such as fault codes, sensor readings, and performance metrics.

Initially introduced in the 1980s, the OBD system has undergone significant evolution. The first version, known as OBD-I, was a rudimentary system mainly focused on emissions issues. It featured basic diagnostic capabilities but lacked uniformity across different manufacturers. The advancements in vehicle technology and the introduction of stricter emissions regulations led to the development of OBD-II in the mid-1990s, which established a comprehensive and standardized approach to vehicle diagnostics. OBD-II supports a wide range of vehicle data collection, including real-time engine parameters, diagnostic trouble codes (DTCs), and even some advanced vehicle performance information.

The OBD-II standard also introduced enhanced protocols for various vehicle makes and models, allowing for greater consistency and improved diagnostics. This means that independent repair shops and private individuals can utilize the OBD port to retrieve valuable information and conduct repairs without necessarily relying on dealership services. The OBD port ultimately improves vehicle transparency while significantly aiding in the early detection of issues, thereby promoting timely maintenance and reducing the likelihood of costly repairs due to undiagnosed problems. With the OBD port serving as the primary interface for vehicular diagnostics, it empowers car owners to better manage their vehicle's health and performance.

How Does the OBD Port Work?

The On-Board Diagnostics (OBD) port serves as a crucial interface between a vehicle's various systems and external diagnostic tools. Primarily standardized under the OBD-II specification, the port facilitates communication by utilizing several protocols such as ISO 9141, SAE J1850, ISO 14230, and ISO 15765. Each of these protocols allows for the transmission of diagnostic data to and from the vehicle's Engine Control Unit (ECU), thus enabling mechanics and technicians to efficiently diagnose potential issues.

When a vehicle experiences a malfunction, the OBD system triggers a Diagnostic Trouble Code (DTC), which is stored in the ECU. These DTCs are alphanumeric values that represent specific issues detected by the vehicle. For instance, a DTC associated with the emission system might indicate a need for a catalyst replacement. The presence of these codes is vital for troubleshooting, as they provide essential insight into the nature and severity of a vehicle’s problems.

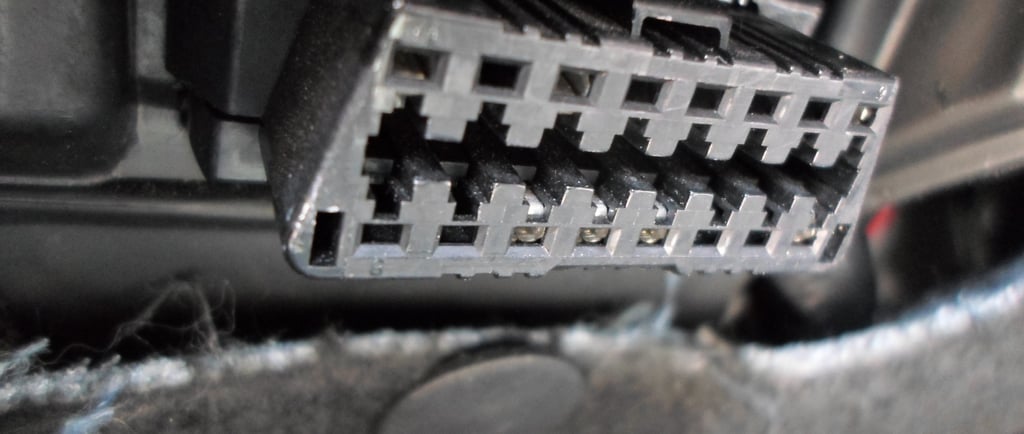

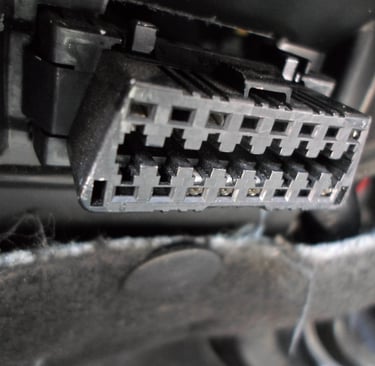

To interact with the OBD port, technicians typically employ OBD-II scanners or diagnostic software applications. These tools connect to the OBD port, usually located under the dashboard near the driver's seat. Once connected, they can retrieve DTCs and real-time data such as engine RPM, vehicle speed, and coolant temperature. This integration of hardware and software allows for a comprehensive understanding of the vehicle's performance and can assist in preventive maintenance by identifying issues before they escalate.

The significance of the OBD port extends beyond just diagnostics; it plays a pivotal role in meeting emissions regulations and ensuring vehicle performance efficiency. As vehicles become increasingly sophisticated, understanding the operation of the OBD port and its systems will remain integral for automotive service and maintenance.

Uses and Benefits of the OBD Port

The On-Board Diagnostics (OBD) port plays a crucial role in modern vehicles, offering a diverse range of applications that enhance vehicle maintenance and performance while ensuring compliance with emissions regulations. One of the primary benefits of the OBD port is its ability to aid mechanics in diagnosing vehicle issues efficiently. By connecting a diagnostic scanner to the OBD port, professionals can retrieve trouble codes that indicate malfunctions within various systems, ranging from the engine to the transmission. This capability significantly reduces the diagnostic time required to pinpoint issues, thereby leading to more effective repairs and less downtime for the vehicle owner.

Moreover, the OBD port facilitates real-time monitoring of engine parameters, allowing both mechanics and vehicle owners to assess the performance of critical components such as fuel efficiency, temperature, and emissions. By tracking these metrics, individuals can detect potential problems before they escalate, promoting proactive vehicle maintenance. This can ultimately lead to improved fuel economy and extended vehicle lifespan, representing a cost-effective advantage for car owners.

In addition to aiding professional mechanics, the OBD port serves as a valuable tool for car enthusiasts and DIY mechanics. This accessibility allows individuals to troubleshoot issues independently without relying on professional assistance. Many aftermarket diagnostic tools are available, empowering driveway mechanics to identify common problems, clear trouble codes, and reset warning lights. Furthermore, the OBD port supports compliance with environmental regulations by facilitating emission control diagnostics, helping to monitor and reduce harmful emissions from vehicles. This regulatory compliance ensures that vehicle owners not only meet legal standards but also contribute to a cleaner environment.

Overall, the OBD port provides significant advantages that enhance both vehicle maintenance and performance while supporting environmentally responsible practices.

Future of the OBD Port in Automotive Technology

The automotive industry is witnessing a transformative era, with significant advancements in technology steadily influencing diagnostics and vehicle functionality. As we look ahead, the On-Board Diagnostics (OBD) port is poised to evolve significantly, reflecting broad trends in connectivity, smart technology integration, and emerging vehicle types such as electric vehicles (EVs) and automated driving systems. The OBD port has traditionally served as a pivotal component for vehicle diagnostics, offering crucial information regarding engine performance and emissions. However, future developments suggest that its role will expand considerably.

One notable trend is the increasing connectivity between vehicles and external systems. The integration of smart technology allows vehicles to communicate with cloud-based platforms, which will enhance real-time diagnostics, troubleshooting, and maintenance scheduling. This connectivity can lead to predictive maintenance capabilities, where vehicles alert owners to potential issues before they evolve into major problems. The data gathered through OBD systems may also be utilized for improving vehicle performance metrics, gradually reshaping the role of the OBD port.

Moreover, the growing prevalence of EVs presents both challenges and opportunities for OBD technology. Electric vehicles require distinct diagnostic protocols given their unique systems and components, prompting the development of advanced OBD standards. As these vehicles become increasingly sophisticated, the OBD port will likely adapt to accommodate enhanced monitoring of battery systems, energy consumption, and overall vehicle health.

In the context of automated driving systems, the need for precise diagnostics becomes even more crucial. As vehicles incorporate AI-driven functionalities, rigorous testing and quality control through advanced diagnostic tools will ensure safety and reliability. Consequently, the OBD port may play an integral role in not just vehicle maintenance, but also in monitoring the integrity of autonomous systems.

In conclusion, the future of the OBD port in automotive technology is promising. With advancements in connectivity and the rise of electric and automated vehicles, we can anticipate enhanced diagnostic capabilities that not only improve vehicle maintenance but also contribute significantly to the overall driving experience.
